• 3D reconstruction and animation of the hippocampus from a GFP-M mouse.

• Ultramicroscope creates high-resolution 3D-pictures of flies

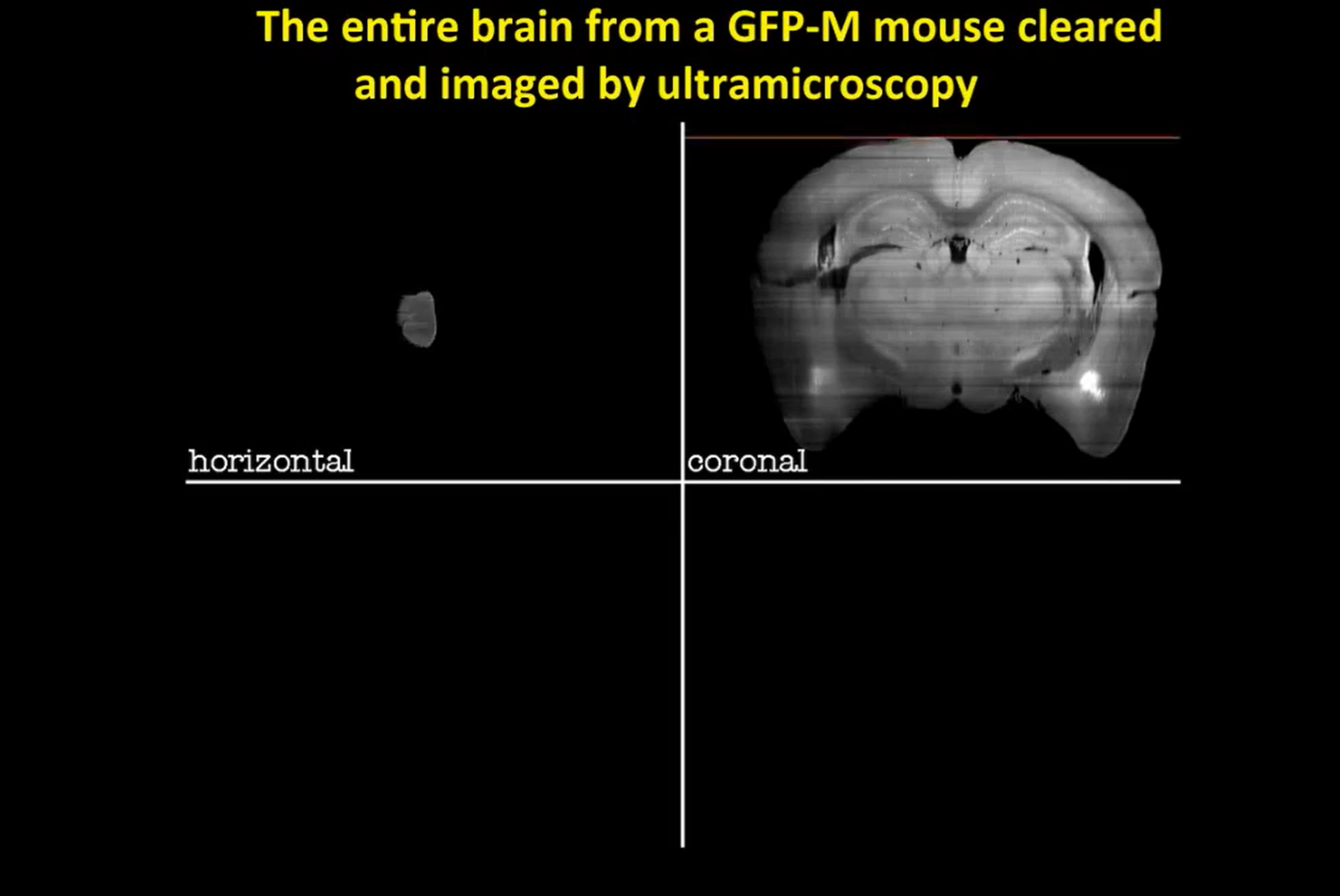

• The simulation of a scan through entire cleared brain from a GFP-M mouse

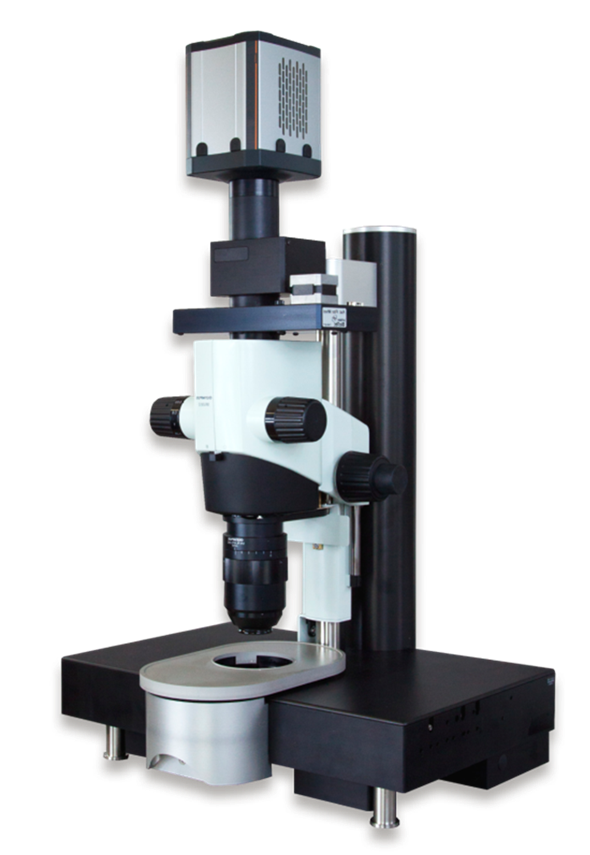

UltraMicroscope II觀察內源性熒光蛋白以實現體內成像

A) 小鼠胚胎E12, 整體,三種標記;
圖片由Serge van de Pavert,
VU Amsterdam提供

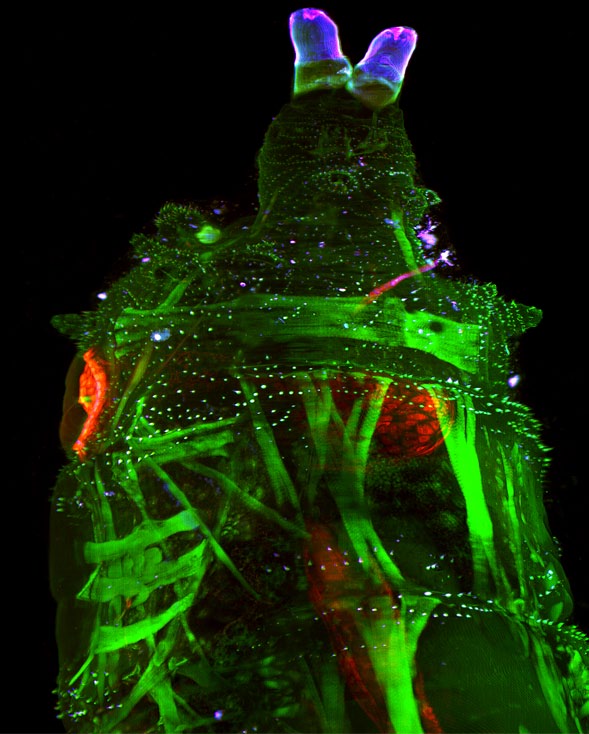

B) 果蠅幼蟲,自發熒光;
圖片由LaVision BioTec公司提供

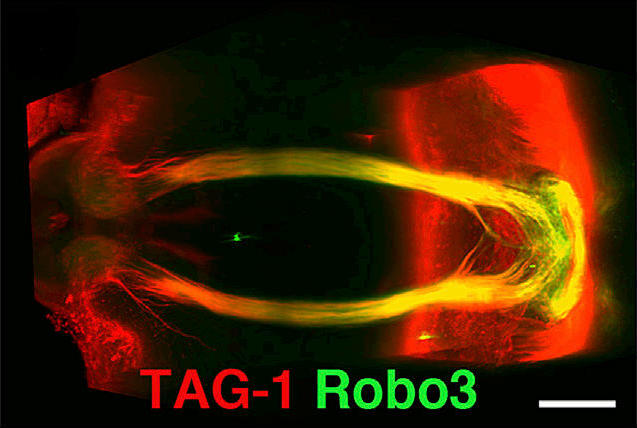

UltraMicroscope II結合3DISCO技術用于研究小鼠神經元軸突連接

UltraMicroscopeII用于觀察神經膠質瘤模型的抗體聚集

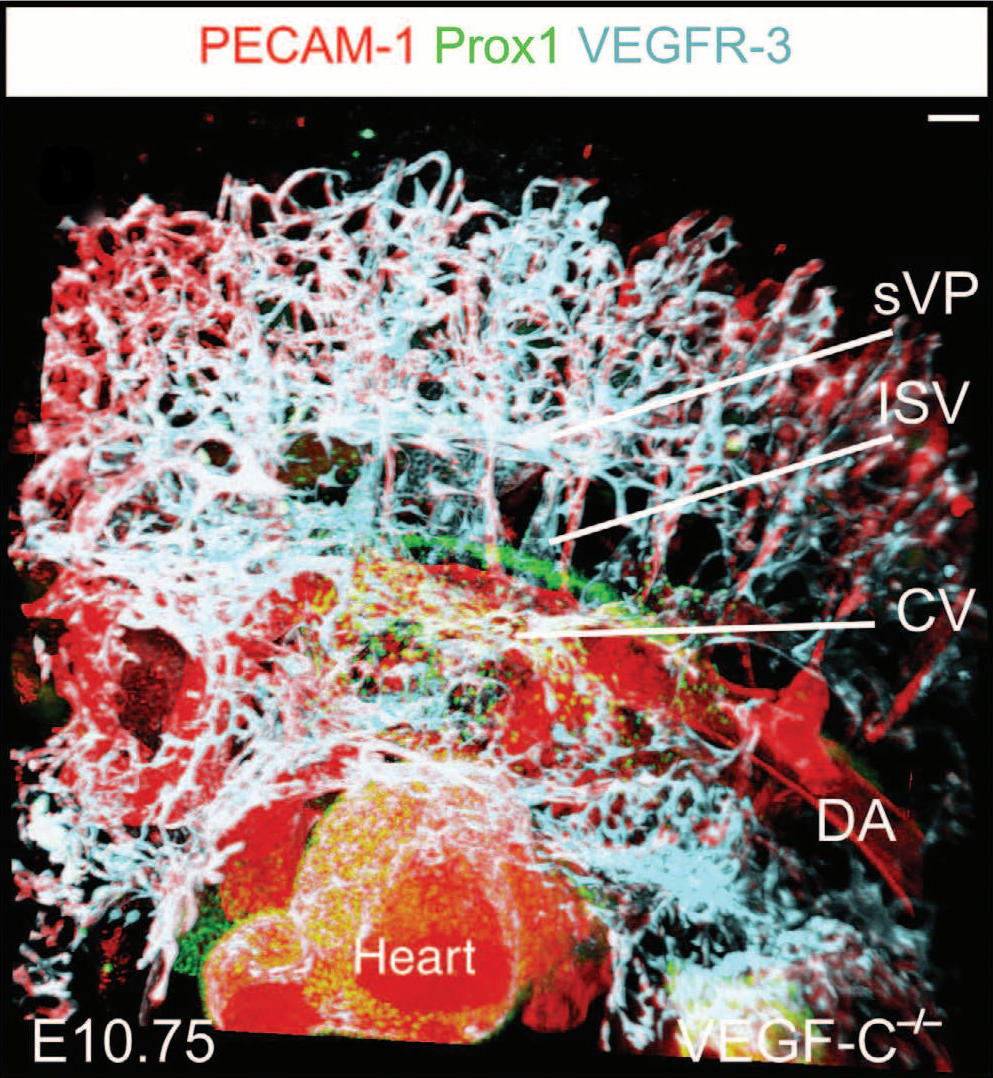

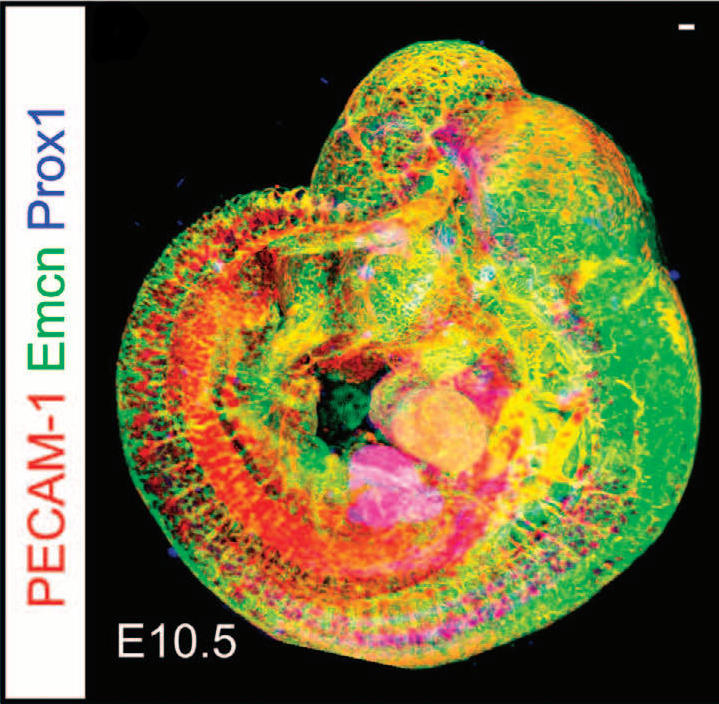

UltraMicroscope II用于研究小鼠胚胎初始淋巴管的形成機制

在哺乳動物發育過程中，主靜脈血管中的內皮細胞亞群表達淋巴管特異基因，進而發育出初級的淋巴結構-淋巴囊。淋巴內皮細胞的產生經過了出芽，擴展和膨脹的過程，但是淋巴管形成的確切機制仍然不完全清楚。使用UltraMicroscope II來觀察整體免疫染色的小鼠胚胎，我們以細胞水平的分辨率觀察到了完整的發育中的血管系統。實驗發現最早的淋巴內皮細胞寬松地連接了主靜脈和淺靜脈叢，進而聚集產生了兩個新發現的淋巴結構，背部外周縱向淋巴管和腹側初級胸導管，最后與主靜脈相連。進一步研究其功能，發現血管內皮生長因子C和基質組分CCBE1對于淋巴內皮細胞出芽和遷移是必需的。研究使用ltraMicroscope II詳細觀察了淋巴管的發育并構建了新的模型。

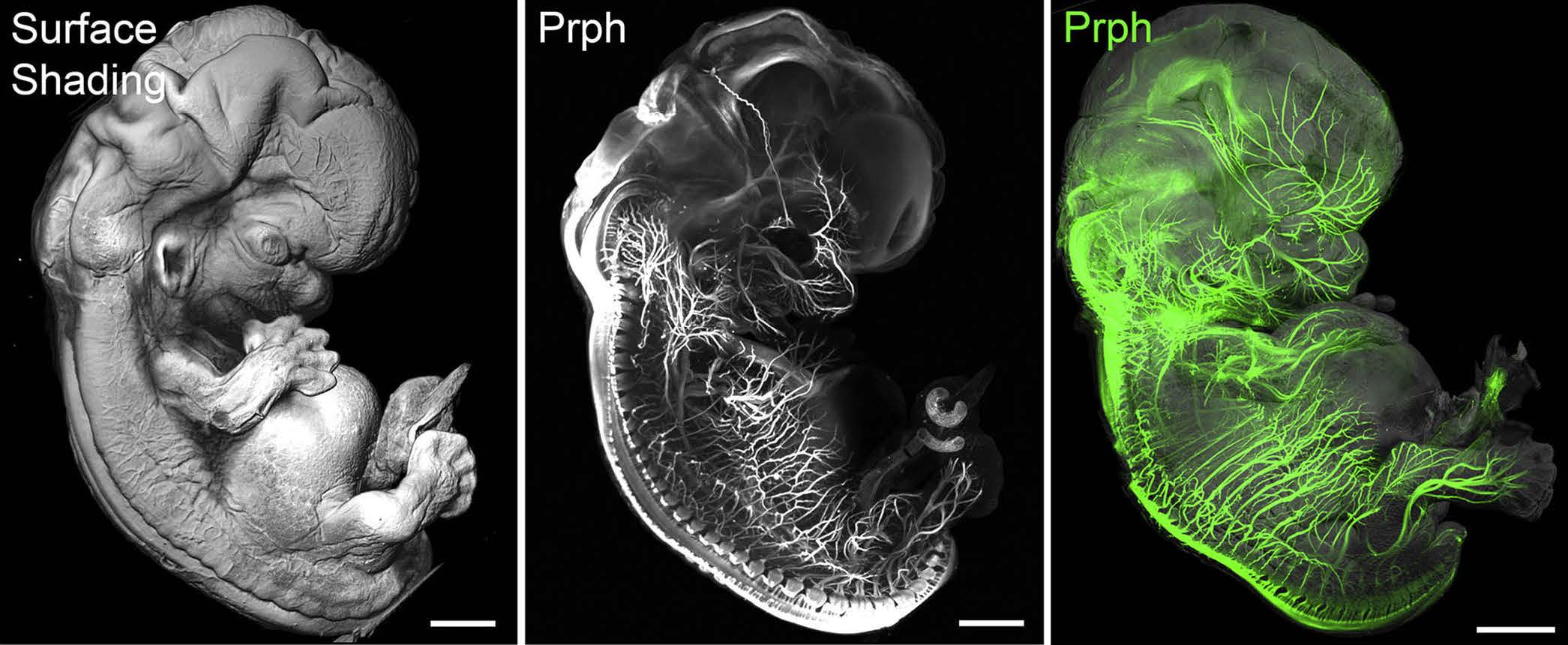

UltraMicroscope II用于觀察人類胚胎早期生長發育

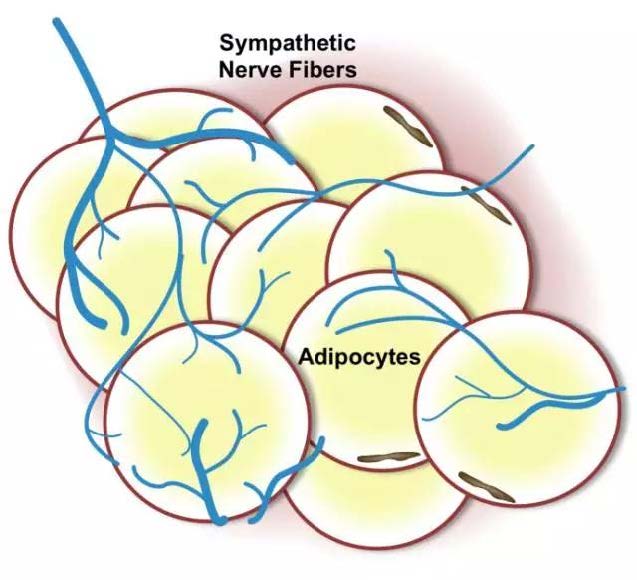

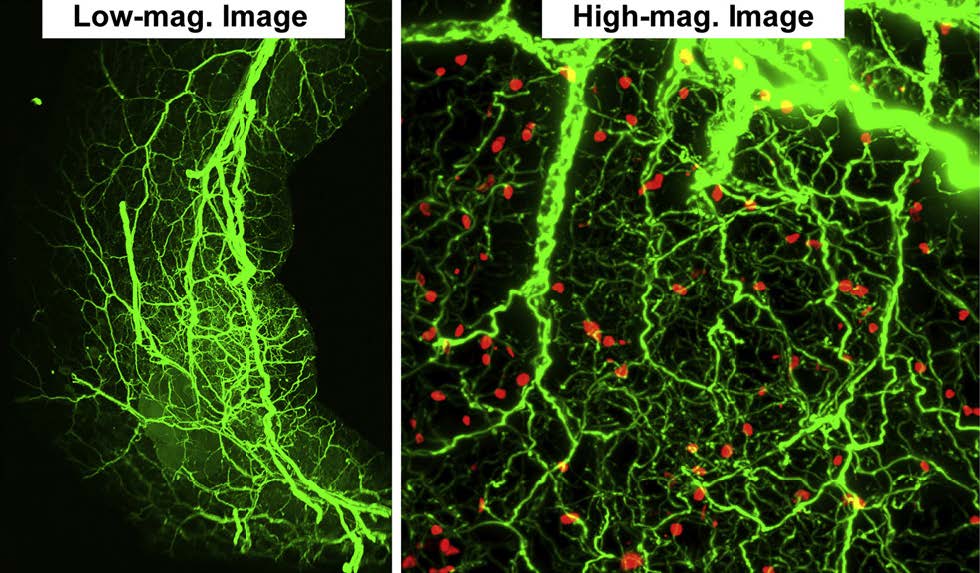

UltraMicroscope II用于闡釋脂肪代謝神經調控機制

部分應用文獻

2) CUBIC pathology: three-dimensional imaging for pathological diagnosis. Nojima S, Susaki EA, Yoshida K, Takemoto H, Tsujimura N, Iijima S, Takachi K, Nakahara Y, Tahara S, Ohshima K, Kurashige M, Hori Y, Wada N, Ikeda JI, Kumanogoh A, Morii E, Ueda HR. Sci Rep. 2017 Aug

3) Tridimensional Visualization and Analysis of Early Human Development. Belle M, Godefroy D, Couly G, Malone SA, Collier F, Giacobini P, Chédotal A. Cell. 2017 Mar

4) Intra-islet lesions and lobular variations in β-cell mass expansion in ob/ob mice revealed by 3D imaging of intact pancreas. Parween S, Kostromina E, Nord C, Eriksson M, Lindstr?m P, Ahlgren U. Sci Rep. 2016 Oct

5) Shrinkage-mediated imaging of entire organs and organisms using uDISCO. Pan C, Cai R, uacquarelli FP, Ghasemigharagoz A, Lourbopoulos A, Matryba P, Plesnila N, Dichgans M, Hellal F,Ertürk A. Nat Methods. 2016 Aug

6) Fully Automated Evaluation of Total Glomerular Number and Capillary Tuft Size in Nephritic Kidneys UsingLightsheet Microscopy. Klingberg A, Hasenberg A, Ludwig-Portugall I, Medyukhina A, M?nn L, Brenzel A, Engel DR, Figge MT, Kurts C,Gunzer M. J Am Soc Nephrol. 2016 Aug

7) Three-Dimensional Study of Alzheimers Disease Hallmarks Using the iDISCO Clearing Method. Liebmann T, Renier N, Bettayeb K, Greengard P, Tessier-Lavigne M, Flajolet M. Cell Rep. 2016 Jul

8) Ultramicroscopy as a novel tool to unravel the tropism of AAV gene therapy vectors in the brain. Alves S, Bode J, Bemelmans AP, von Kalle C, Cartier N, Tews B. Sci Rep. 2016 Jun

9) Mapping of Brain Activity by Automated Volume Analysis of Immediate Early Genes. Renier N, Adams EL, Kirst C, Wu Z, Azevedo R, Kohl J, Autry AE, Kadiri L, Umadevi Venkataraju K, Zhou Y, Wang VX, Tang CY, Olsen O, Dulac C, Osten P, Tessier-Lavigne M. Cell. 2016 Jun

10) Wiring and Molecular Features of Prefrontal Ensembles Representing Distinct Experiences. Ye L, Allen WE, Thompson KR, Tian , Hsueh B, Ramakrishnan C, Wang AC, Jennings JH, Adhikari A, HalpernCH, Witten IB, Barth AL, Luo L, McNab JA, Deisseroth K Cell. 2016 Jun

11) Correlated magnetic resonance imaging and ultramicroscopy (MR-UM) is a tool kit to assess the dynamics of glioma angiogenesis. Breckwoldt MO, Bode J, Kurz FT, Hoffmann A, Ochs K, Ott M, Deumelandt K, Krüwel T, Schwarz D, Fischer M,Helluy X, Milford D, Kirschbaum K, Solecki G, Chiblak S, Abdollahi A, Winkler F, Wick W, Platten M, Heiland S,Bendszus M, Tews B. Elife. 2016 Feb

12) Advanced CUBIC protocols for whole-brain and whole-body clearing and imaging. Susaki EA, Tainaka K, Perrin D, Yukinaga H, Kuno A, Ueda HR. Nat Protoc. 2015 Nov

13) Combined 3DISCO clearing method, retrograde tracer and ultramicroscopy to map corneal neurons in a whole adult mouse trigeminal ganglion. Launay PS, Godefroy D, Khabou H, Rostene W, Sahel JA, Baudouin C, Melik Parsadaniantz S, Reaux-Le Goazigo A. Exp Eye Res. 2015 Oct

14) Podoplanin and CLEC-2 drive cerebrovascular patterning and integrity during development. Lowe KL, Finney BA, Deppermann C, H?gerling R, Gazit SL, Frampton J, Buckley C, Camerer E, Nieswandt B,Kiefer F, Watson SP. Blood. 2015 Jun

15) iDISCO: A Simple, Rapid Method to Immunolabel Large Tissue Samples for Volume Imaging. Renier N, Wu Z, Simon DJ, Yang J, Ariel P, Tessier-Lavigne M. Cell. 2014 Nov

16) Whole-body imaging with single-cell resolution by tissue decolorization. Tainaka K, Kubota SI, Suyama TQ, Susaki EA, Perrin D, Ukai-Tadenuma M, Ukai H, Ueda HR. Cell. 2014 Nov

17) A Simple Method for 3D Analysis of Immunolabeled Axonal Tracts in a Transparent Nervous System. Belle M, Godefroy D, Dominici C, Heitz-Marchaland C, Zelina P, Hellal F,Bradke F, Chédotal A Cell Rep. 2014 Nov

18) Fusing VE-cadherin to α-catenin impairs fetal liver hematopoiesis and lymph but not blood vessel formation. Dartsch N, Schulte D, H?gerling R, Kiefer F, Vestweber D. Mol Cell Biol. 2014 May 9) Multispectral fluorescence ultramicroscopy: three-dimensional visualization and automatic quantification of tumor morphology, drug penetration, and antiangiogenic treatment response. Dobosz M, Ntziachristos V, Scheuer W, Strobel S Neoplasia. 2014 Jan
